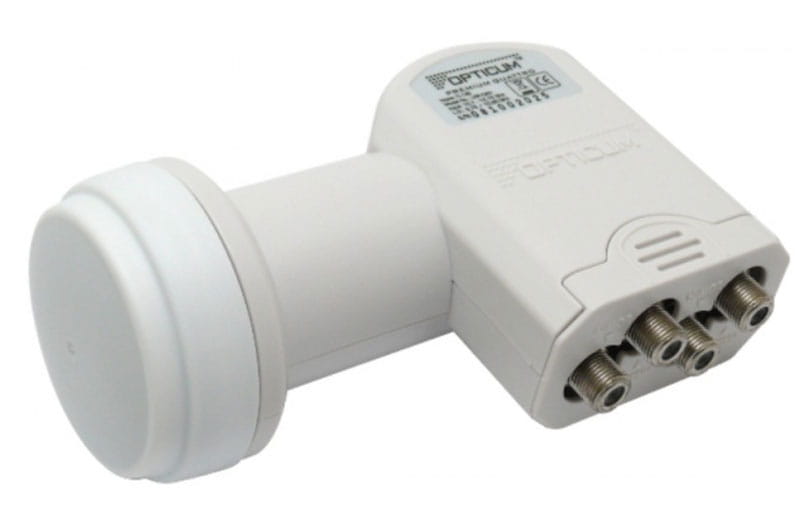

LNB QUATTRO LRP-04H OPTICUM

This converter belongs to the forefront of this type of devices in the world.

It is characterized by low 0.1dB phase noise ratio.

Precise workmanship and high technical parameters practically translate into a smaller impact of weather conditions on the quality of the received signal.

 QUATTRO converters (with four independent outputs HH, VH, HL, VL) are applicable:

- in installations built using multiswitches
- in headends of cable television and cable, where they cooperate with sets of satellite tuners
- in installations distributing the first intermediate satellite frequency.

input frequency:

lower band, vertical polarization - 10.7-11.7GHz
lower band, horizontal polarization - 10.7-11.7 GHz
upper band, vertical polarization 11.7-12.75GHz
upper band, polarization level - 11.7-12.75GHz

frequency of the oscillator:

LOW 9.75GHz
HIGH 10.60GHz
output frequency:
lower band 950-1950MHz
upper band 1100-2150MHz
the switching signal of the band - 22KHz
noise figure - 0.1 dB
diameter of the handle - 40mm
Weight: 0.250 kg

Quantity in the box: 50

EAN CODE: 5901912282100
