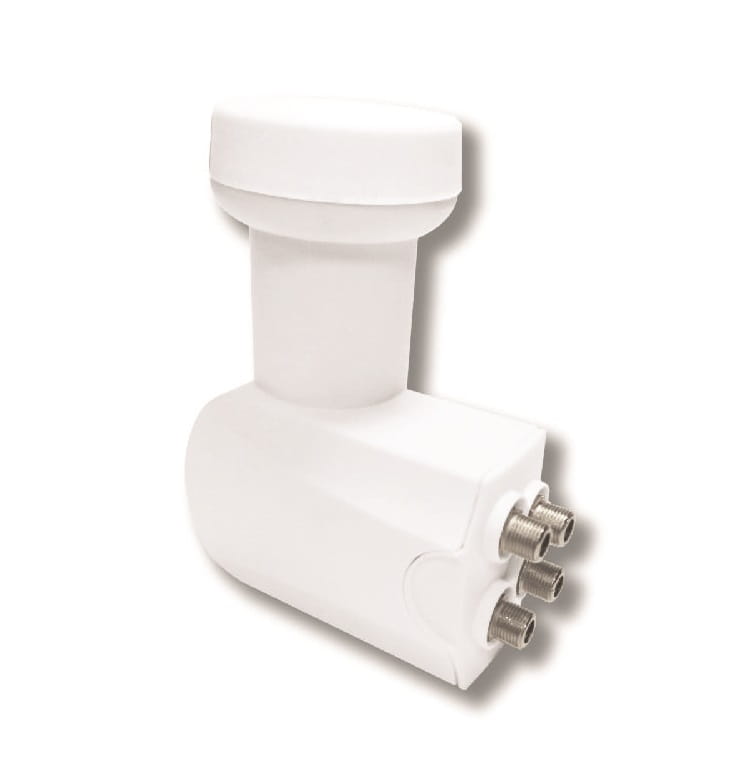

LNB QUATTRO OPTICUM ROBUST

The QUATRO converter is designed to work only with a multiswitch for receiving digital and analog signals from OPTICUM

- It has four outputs with separated polarisations in bands protected by a shield.

- Cooperation only on a collective basis with a multiswitch

- Low power consumption High separation between polarizations

- High resistance to extreme weather conditions

- Recommended in installations where high sensitivity of the received signal is required.

- Recommended aerial not less than 0.8 m.

Technical data:

- Input frequency band: 10.70 - 12.75 GHz
- Output frequency band: 950 - 2150 MHz
- Frequencies of L.O .: 9.75 GHz and 10.60 GHz
- Outputs F: 4 pcs. (H / H, H / L, V / H, V / L)
- Noise ratio: 0.6dB
- Gain: 56 dB
- Offset: 1kHz: -50 dBc / Hz, 10 kHz: -75 dBc / Hz, 100kHz: -95 dBc / Hz
- Power consumption: 210 mA
- Dimensions: 133.0 mm × 103.6 mm × 60.0 mm
- Weight: 255g
- Standard handle diameter: 40mm
