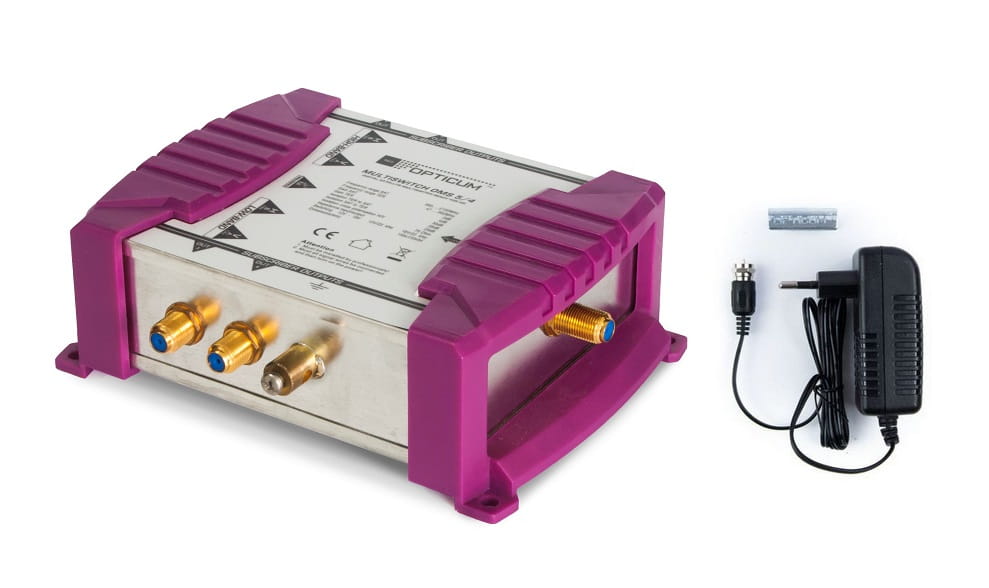

MULTISWITCH OPTICUM OMS 5/4 GOLDEN LINE

The multiswitch is designed to expand the internal antenna installation of satellite and terrestrial Full HD and SD systems.

The device allows you to receive programs from one satellite and connect up to 4 satellite tuners.

Gold-plated sockets significantly reduce signal losses at the antenna cable connection, and no oxidation. The multiswitch automatically recognizes the type of signal that will be transmitted to the tuners.

The installation should include the connection of a multiswitch to a satellite dish with a diameter of not less than 0.8 m and a Quatro converter, and a terrestrial TV antenna.

Separation of the Sat and TV signal coming from the multiswitch takes place via the end subscriber sockets.

Quatro converters and subscriber sockets are available in our store.

The multiswitch is powered via an external power supply, which eliminates the phenomenon of increased operating temperature which is a frequent cause of damage to the device.

When installing the device, the existing installation conditions regarding power supply must be taken into account: locations away from the influence of atmospheric conditions, protection against unauthorized access to adequate ventilation.

Connection:

one Quatro converter
one terrestrial antenna
four sat tuners
Technical data:

- SAT frequency range: 950-2200 MHz

- TER frequency range: 47-862 MHz

- SAT gain (950-2150 MHz): 2 dB

- TER gain (47-862 MHz): 4 dB

- SAT separation to TER: 28 dB

- TER to SAT separation: 30 dB

- Separation between H / V polarities: 25 dB

- Maximum SAT output level: 101 dBuV

- Maximum TER output level: 85 dBuV

- I / O Impedance: 75 Ohm

- Polarity switching / band: 13V / 18V 13V / 22kHz-18V / 22kHz

- Power supply from the mains: 230V AC 50Hz

- Working temperature: 0 ... + 55 oC

- Dimensions: 175 x 133 x 54 mm (real dimensions)

- The kit includes: Multiswitch OMS 5/6 Power supply Wrench for screwing the F connector. Original packaging
