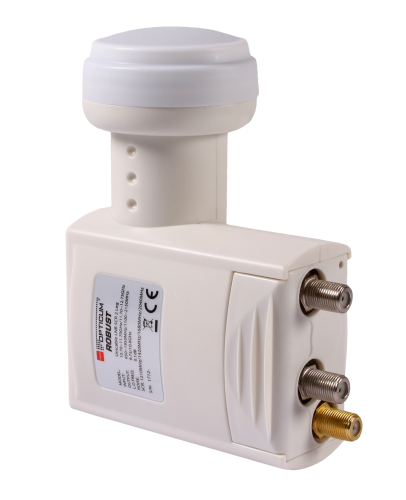

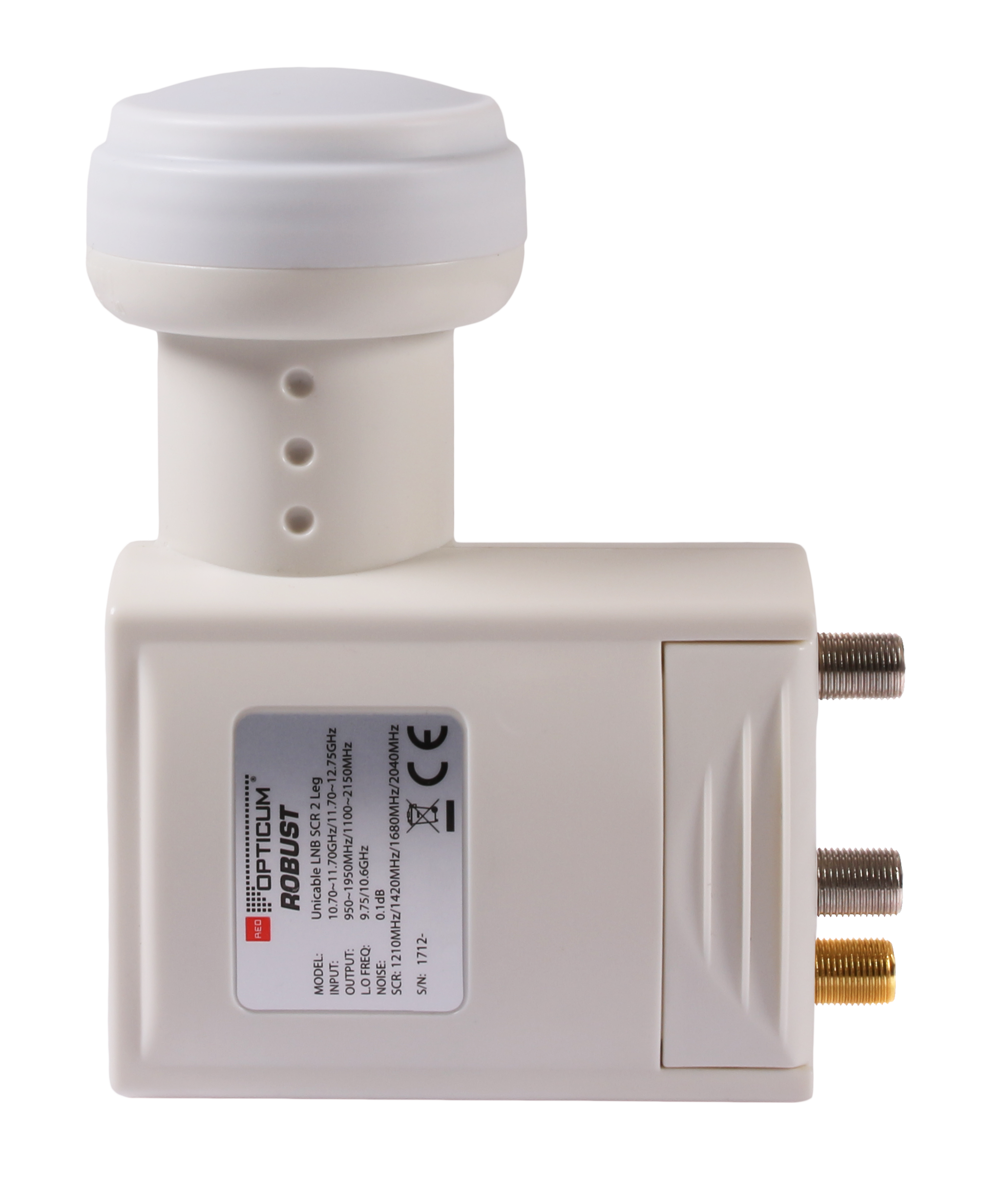

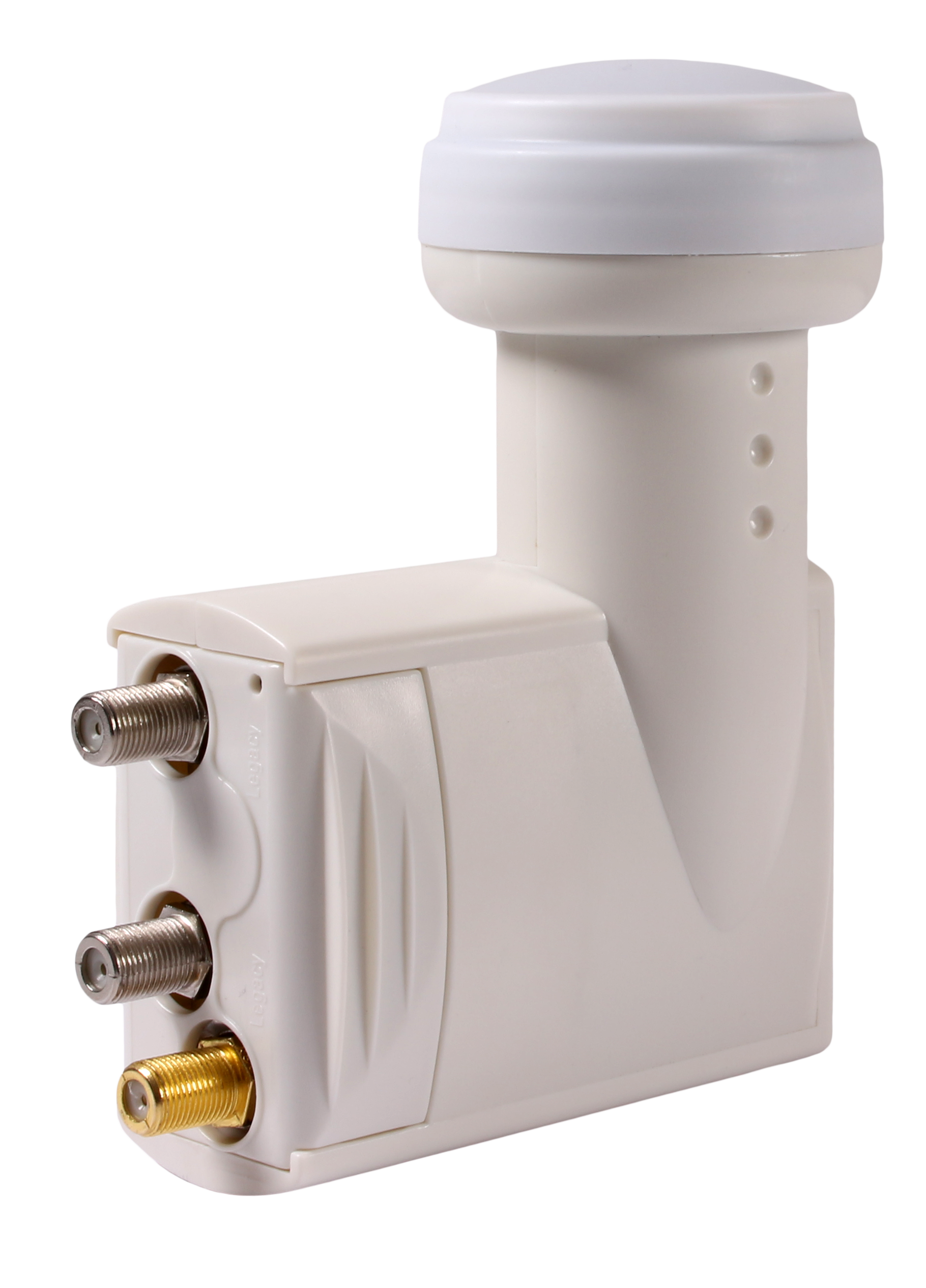

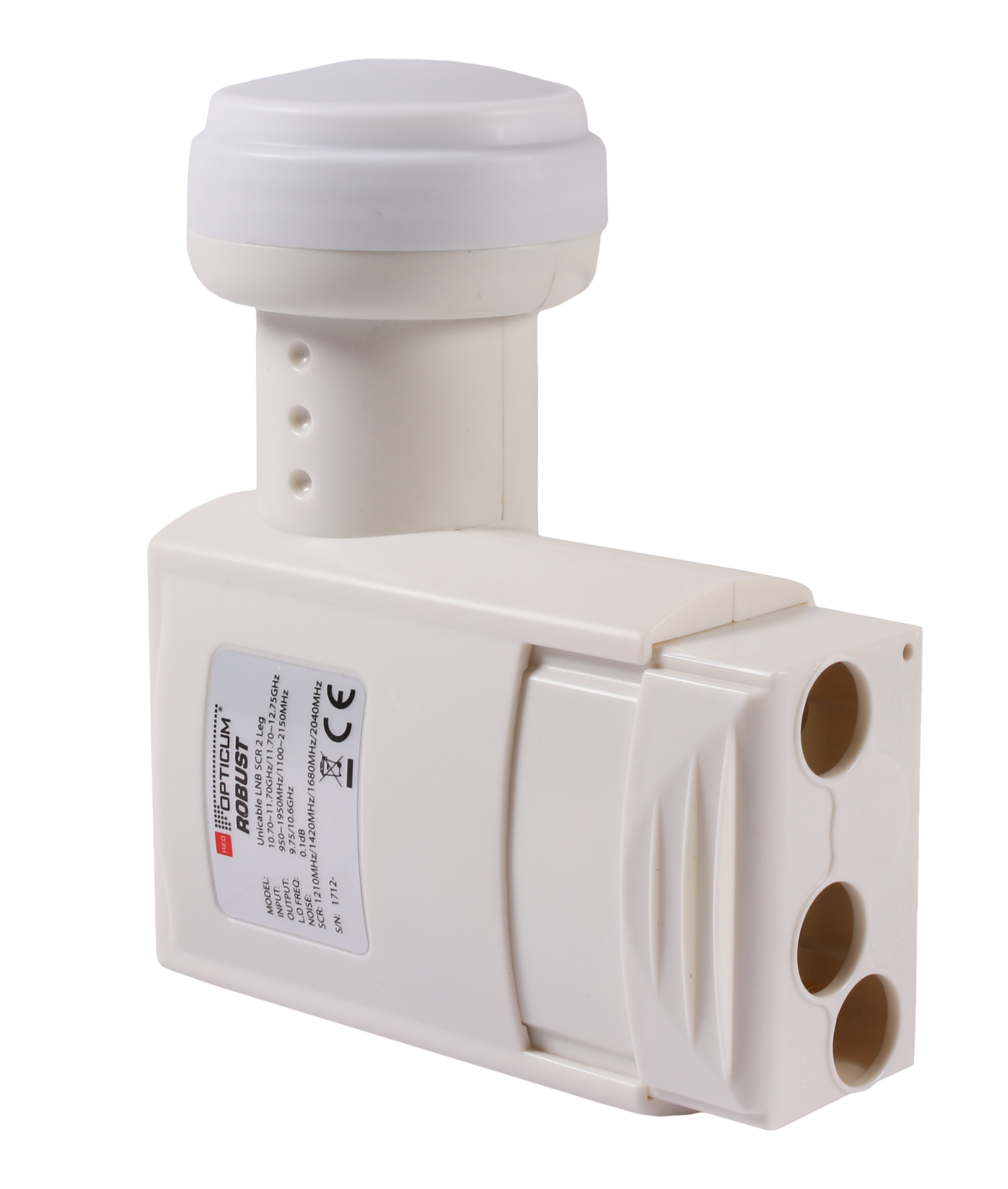

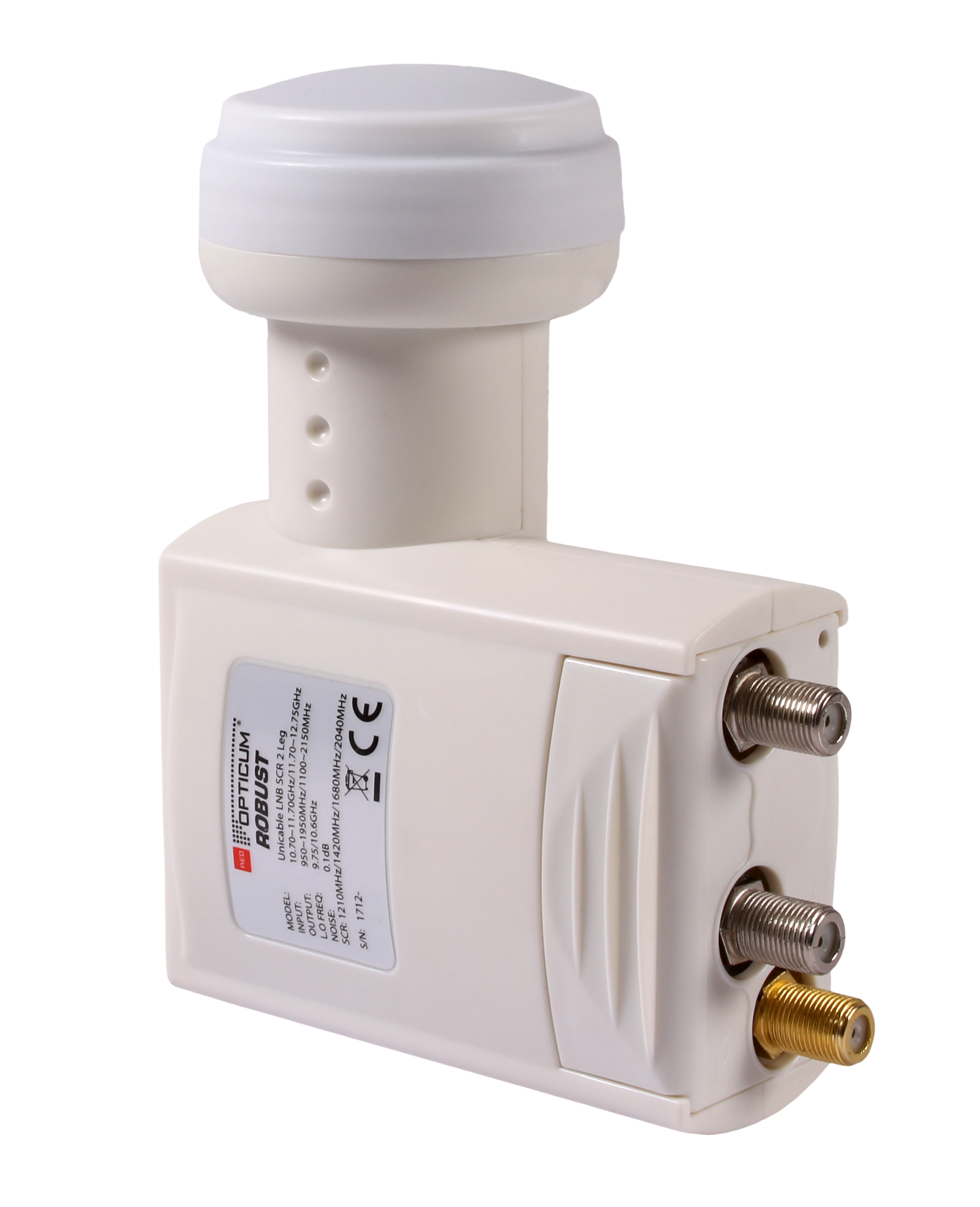

OPTICUM ROBUST SCR 4UB 2 LEGACY
Availability:
on sale
on sale
Dispatched within:
5 days
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
KON0081
Description
| Teilnehmeranschlüsse | 7 (4 x SCR, 3 x Legacy) | ||||
| Low Band Input Frequency Range | 10.7-11.7 | GHz | |||
| Low Band Output Frequency Range | 950 ~ 1950 | MHz | |||
| Low Band LO Frequency | 9.75 | GHz | |||
| High Band Input Frequency Range | 11.7 ~ 12.75 | GHz | |||
| High Band Output Frequency Range | 1100 ~ 2150 | MHz | |||
| High Band LO Frequency | 10.6 | GHz | |||
| Noise Figure
A8
|
typ 0.8 (1.0max) | dB | |||
| LO Initial Accuracy | ± 1.0 Max | MHz | |||
| LO Temperature Drift | ± 2.0 Max | MHz | |||
| Phase Noise (@ 10 kHz) | - 90 dBc / Hz Max. | ||||
| Conversion Gain | 60 Min | dB | |||
| Gain Ripple (Over 26 MHz Bandwidth) | ±0.75 | dB | |||
| Gain Variation (Over Full Band) | ± 3 Max. | dB | |||
| 1 dB Compression Point (@ Output) | 0 Min | dBm | |||
| Cross Polarization Isolation | 22 Min | dB | |||
| Control Signal Ca (Vertical Polarization) | 11.0 ~ 14.0 | V | |||
| Control Signal Cb (Horizontal Polarization) | 16.0 ~ 20.0 | V | |||
| Control Signal Cc (Band Switching) | 22 +/- 4 | kHz | |||
| Output VSWR | 2.0 : 1 | ||||
| In-Band Spurious | - 60 dBm Max | dBm | |||
| Current Consumption | 200@ 11 ~ 20 V | Ma | |||
| Operating Temperature | - 35°C ~ + 60 °C | ||||
| Output Impedance | 75 | ||||
| TV inser loss (4-806MHz) | -3(min) | ||||
| Output Connector F-Type(Female) | -3(min) | dB | |||
| SCR frequency | 1210 | MHz | |||
| 1420 | MHz | ||||
| 1680 | MHz | ||||
| 2040 | |||||
